XTAR VX4 Visible Mixer Battery Charger Reviewed by SessionDrummer

FIRST time ever reviewing a battery charger. Now I loaned my scope out, so NO deep diving in this review, but you’ll know pretty much everything you need to know anyway. Quite frankly, @SmilingOgre is the guy you want for that. :slight_smile:

Thanks out to Lily at XTAR for sending this out for review, as well as @OldGoat for sending her my way. Lot’s to cover with this one, so let’s dive in.

Features:

  • Real time charging display including voltage, current, and charged capacity (except for 1.5V Li-ion due to how they work).
  • 3Ax1/2Ax2/1Ax4/0.5Ax4/0.25Ax4 charging currents.
  • Automated charging current (based on power input, number of batteries, and internal resistance).
  • Low voltage battery recovery.
  • TC-CC-CV charging for Li-ion.
  • Multiple protection technologies.
  • USB-C charging (20W PD recommended, 5V 2A or QC3.0 with performance limitations).
  • Capacity testing / grading (on discharge) for all battery types.

Compatibility:

  • 3.6/3.7V Li-ion (4.2V max)

  • 3.2V LiFePO4 (3.65V max)

  • 10440,14500,14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650

  • 1.5V Li-ion AA, and AAA

  • 1.2V NiMH AAA, AA, A, SC, C, and D

One of the bigger selling points was the Capacity tester function, including AA, and AAA.

LOTS of size and chemistry compatibility with this one.

Love the manual charging current options (limited by amount of bays in use).

3 stage charging, including an initial low charge “wakeup”.

Low and/or dead cell recovery.

And of course, a plethora of protections.

Standard packaging, with good labeling.

Lily shipped me the kit, which included the PD20W charger.

Poster style User’s Guide, and compatibility chart.

The VX4 was big enough to charge almost any cells.

With no fans, the VX4 used vents on the back …

and sides …

USB-C power input.

The slides were looser than expected, but held every battery tested firmly.

The buttons were clearly laid out, but not illuminated, and had dual functions (tap, long press).

C/V button:

  • Single Press - changes charging current levels (high to low steps, the charger may automatically limit the maximum allowed current).
  • Long Press - switches between normal (3.6/3.7V Li-ion) and (3.2V) LiFePO4 modes.

Mode button:

  • Single Press (during charging) - switches display between real time charging current and charged capacity.
  • Long press (during charging) - switches between charging and capacity testing modes.

mWh/mAh button:

  • Single Press (during 1.5V Li-ion) - switches between mWh and mAh display during 1.5V capacity testing.
  • Long press - turns off backlight.

The display was bright and easy to read, and only got slightly cloudy when viewing off axis.

I tested EVERY size of battery I had in my arsenal on the VX4, including flat tops,and button tops.

It had no trouble running multiple sizes at the same time, and even with the 20700, there was room left.

Once I started with my 18650, and 21700 tests, I noticed the inner bays were closer together.

While only slightly harder to insert/remove, a full 21700 load showcased the inner bay spacing.

And yes, I did torture it a bit with some AAA’s.

Mixed chemistry was also a non-issue:

When charging the real time charging current and voltage was available.

When complete.

The grading (capacity testing) took quite a while on the bigger batts, but when done, your mAh were presented.

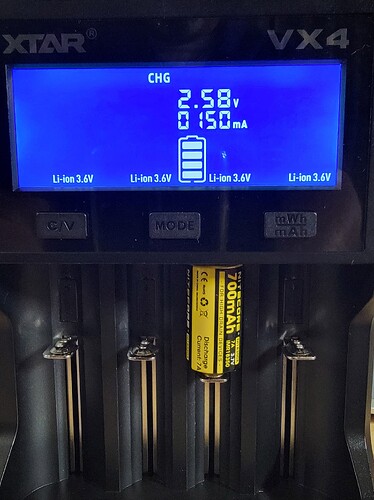

For one of my final “torture tests”, I threw in a particularly finicky 18350 that my go to Opus refused to charge. At first it identified it as an Ni-MH …

But quickly corrected it …

Testing/Usage:

Using the VX4 was about as easy as it could be. Plop in your batteries of almost any size, and chemistry, and just walk away. I personally set the charging level at 0.5A because flash charging, and heating your batteries is the fastest way to shorten their lives. Capacity testing on my larger cells took almost a full day, so that would not be a daily thing for me. Charging was fast, and the finished charge levels were on par with my other chargers. The display was very bright and easy to read, and could be turned off it needed, which was a nice touch for bedroom charging. The slides were a little looser than I expected, but proved to be a non-issue with every battery I tested. Even though I noticed the smaller gap on the inner bays when testing a full load of 21700’s that proved to also be a non-issue. Very easy to use, and did so simply.

Pros:

  • Staggering array of compatible battery sizes and chemistries
  • Mixes sizing and chemistry charging
  • Bright easy to read display (with ability to turn off)
  • Ability to use standard USB-C power input, or 20w adapter (with the kit)
  • Faster than average charging
  • Charging and Capacity Testing
  • Low Voltage (Dead) battery Recovery
  • Simple and easy to adjust, and use
  • Very quiet

Cons:

  • Buttons not illuminated
  • Capacity testing can take full day for large cells
  • Inner bay spacing narrower
  • Cannot set individual bay charging current
  • No battery temps or internal resistance
  • Documentation just average

Conclusion:

All in, this was an impressively easy to use battery charger. Set your charging levels if required, or just drop your batteries in and go. I didn’t have any “dead” batteries to ressurect, but I did have some VERY old button tops, and they charged without issue. I was impressed that my finicky 18350 that wouldn’t even register on another charger, was chared with the VX4 without issue. It was nice they included a disable feature for the display if needed. It did what it was supposed to, and it did it simply. Very easy to run, and even without fans it did not get overly hot. Probably one of the best selling points was the almost any size or chemistry compatibility. Being able to charge and test AA, and AAA was also an added bonus. If you are looking for a charger that is compatible with most batts and chemistries, you should take a look at this one.

An impressive showing from XTAR, and thanks again out to Lily for sending this out for review.

https://www.amazon.com/XTAR-VX4-Visible-Batteries-Capacity/dp/B0D6VS3XLY

18 Likes

Sounds like a winner. If my dragon ever dies, this would be a consideration. Thanks for the thorough review DMan.

4 Likes

I think my beloved gyrfalcons may be gone forever…They have been out of stock everywhere

5 Likes

The miboxer i got a while back has been amazing. Best charger i ever had by far.

5 Likes

Don’t you hate that? Just when you find something that works great, you can’t find a replacement for it.

4 Likes

I think i saw them in stock somewhere recently

3 Likes

@Lostmarbles thank you. It was interesting to run it side by side with my Opus.

5 Likes

You know the deal @fidalgo_vapes, you find something you like, buy spares !!

3 Likes

Excellent review! I wouldn’t have done anything differently. You have it fully covered. Outside of double checking the readouts of voltage I couldn’t have added much with a scope. It is highly unlikely that any significant deviation would have been found. I don’t think I would have even dug out the scope on this one. Great job!!!

5 Likes

Thanks a lot @SmilingOgre, it always means a lot. As soon as @OldGoat hit me up about this one, I immediately thought of you.

It did what it was supposed to do, and it did it well, with no complaints. The added bonus of being able to charge almost every battery size and chemistry was also a bonus. :slight_smile:

5 Likes

You nailed it. Bottom line it did what it was supposed to. I like the fact that is has no fans. My Opus generates a lot of noise I don’t care for. Annoying background noise in recordings, lol.

5 Likes

i have 4 of these wouldnt buy any other ones

5 Likes

Well thanks very much Walt, that really means a lot coming from the OgreVision guy.

:slight_smile:

One of my Opus’s started to make some whine/whining on and off, and I just replaced the fan with a nice bearing unit, and now we’re back to quiet city. I’ll have to see if I can find the link/size/specs for you on it.

#LowerTheNoiseFloor

6 Likes

@Proud2Vape I can now see why.

4 Likes

I bought the VX4 about a month ago to grade all of my 18650 cells. Cells with a higher internal resistance (I did the manual discharge method so my values are probably just relative to one another) fail in it, either constantly cycling charge/discharge/charge/etc… or switch to charge mode. I returned it and the new one did exactly the same thing.

Am I missing something or do you think this is a flaw?

1 Like

@lomeranger the grading process can take a VERY long time, and on some of my 21700’s it seemed close to almost 24 hours, so without more details, you may have just been witnessing the grading process as normal.

@lomeranger

Holding the MODE button switches between normal charging mode and the capacity test, in which the battery is first charged, then discharged and finally charged again. When discharging, the capacity is measured and then shown on the display. The discharge current is fixed at approximately 300mA and cannot be changed. With large batteries, it can take over half a day.

I didn’t time mine, but on some of my heavies, it was literally closer to a day to complete.
